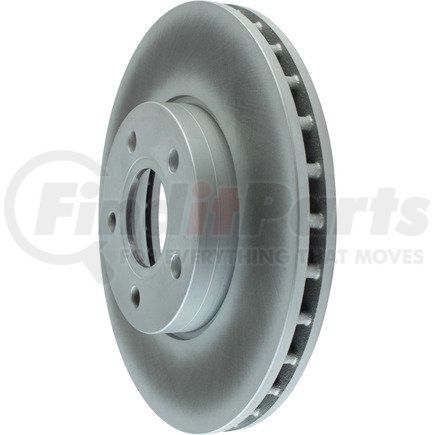

Centric 320.61100 - Centric GCX Rotor with Partial Coating
$6199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Hat Id [cntrc] In | 5.492 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Pillar |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 15.300 |
| Hat Id [cntrc] Mm | 139.500 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 6.940 |
| Discard Thickness | 23.000 MM |
| Discard Thickness | 0.906 IN |
| Nominal Thickness | 25.100 MM |
| Nominal Thickness | 0.988 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 48.800 MM |
| Overall Height | 1.921 IN |
| Outside Diameter | 277.800 MM |
| Outside Diameter | 10.937 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.600 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.700 MM |
| Stud/Lug Hole Diameter | 0.539 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252064 |
Part Interchanges
CENTRIC 320.61100 Cross Reference
We have 3 alternatives for the 320.61100 by CENTRIC:
