(888) 312-8812 Login SignupRAYBESTOS 982354 Raybestos Specialty - Street Performance Coated Brake Rotor
$8599
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
RAYBESTOS 982354 Part Description
Manufacturer
Product Description

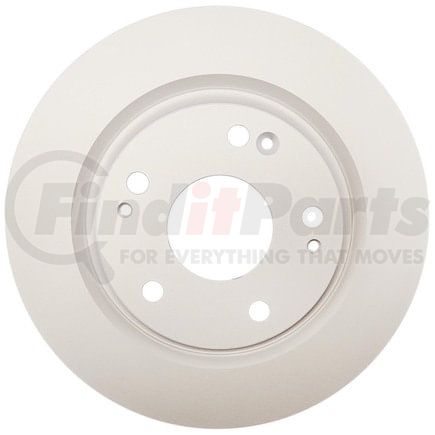

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2023,2020-2017 Honda Civic Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 982354 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.528 IN |
| Center Hole Diameter | 64.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.614 IN |
| Inside Diameter | 193.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 11.094 IN |
| Outside Diameter | 281.8 MM |
| Overall Height | 1.453 IN |
| Overall Height | 36.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213308600 |
RAYBESTOS 982354 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH634624P |
| AutoZone | 74044DL |
| BrakeBest | 982354RGS |
| CENTRIC | 120.40097, 121.40097, 126.40097SL, 126.40097SR, 127.40097CL, 127.40097CR, 127.40097L, 127.40097R, 128.40097L, 128.40097R, 320.40097 |
| Centric Parts | 120.40097, 121.40097, 126.40097SL, 126.40097SR, 127.40097CL, 127.40097CR, 127.40097L, 127.40097R, 128.40097L, 128.40097R, 320.40097 |
| Dura Corp | BR901616, BR901616-01 |
| DuraGo | BR901616, BR901616-01 |
| HONDA | 42510TBFA00 |
| MAGMA PRODUCTS | PSR263078 |
| Qualis | 44842 |
| WORLDPAC | 1407-634624, 1427-634625 |
| Winhere | 6612256 |
RAYBESTOS 982354 Fits Vehicles
- Honda Civic (2017-2020)
RAYBESTOS 982354 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 982354 Questions & Answers
No questions yet
Be the first to ask a question about this product!
