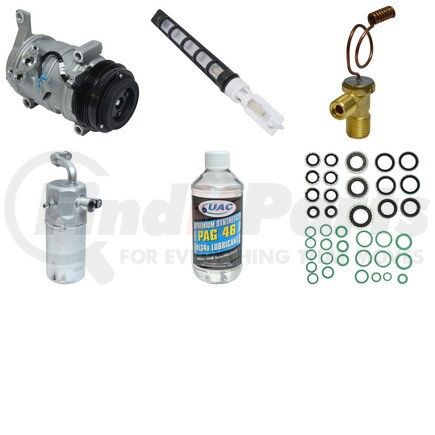

(888) 312-8812 Login SignupUNIVERSAL AIR CONDITIONER (UAC) KT4806 A/C Compressor Kit -- Compressor Replacement Kit
$29049
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
UNIVERSAL AIR CONDITIONER (UAC) KT4806 Part Description
Manufacturer
UNIVERSAL AIR CONDITIONER (UAC) KT4806 Specifications
Product Attributes
| KIT: COMPRESSORS | CO 29002C |
| KIT: ACCUMULATORS/DRIERS | RD 10079C |
| KIT: RAPID SEAL KITS | RS 2550 |
| KIT: EXP VALVES/ORIF TUBE | EX 9708C |
| KIT: CHEMICALS/OILS | RO 0900B |
| {ACCUMULATORS/DRIERS}: Length (mm) | 290 |
| {COMPRESSORS}: Compressor Type | 10S20F |
| {COMPRESSORS}: Connector Terminal Qty | 2 |
| {COMPRESSORS}: Hub Type | DENSO |
| {COMPRESSORS}: Terminal Qty | 2 |
| {COMPRESSORS}: Wire Qty | 1 |
| {EXP VALVES/ORIF TUBE}: Capillary Length (mm) | 210 |
| {EXP VALVES/ORIF TUBE}: Inlet (mm) | M16 x 1.5 |
| {EXP VALVES/ORIF TUBE}: Max Operating Pressure | 0.45±0.0345 |
| {EXP VALVES/ORIF TUBE}: Outlet Thread Size | M20 x 1.5 |
| {EXP VALVES/ORIF TUBE}: Superheat | 3.5 |
| {EXP VALVES/ORIF TUBE}: Tonnage | 1 |
| {CHEMICALS/OILS}: Bottle (Oz) | 8 |
| {CHEMICALS/OILS}: Color | clear |
| {CHEMICALS/OILS}: Contains Leak Detection Dye | No |
| {CHEMICALS/OILS}: Hoses Included | No |
| {CHEMICALS/OILS}: ISO Viscosity Grade | 46 |
| {CHEMICALS/OILS}: Refrigerant Type | R134A |
| {CHEMICALS/OILS}: Type | Polyalkylene |
| {EXP VALVES/ORIF TUBE}: Material Type | plastic/ cloth |
| {EXP VALVES/ORIF TUBE}: Screen Micron Rating | 120 |
| {EXP VALVES/ORIF TUBE}: Tube Outside Diameter | 9.8 |
| {RAPID SEAL KITS}: Material Type | aluminum/ rubber |
| {COMPRESSORS}: Casing Outside Diameter | 161.5 |
| {COMPRESSORS}: Clutch Included | Yes |
| {COMPRESSORS}: Clutch Maximum Diameter | 110 |
| {COMPRESSORS}: Coil Clock Position | 12 |
| {COMPRESSORS}: Compatible Refrigerant Oil Type | PAG-180 |
| {COMPRESSORS}: Connector Gender | Male |
| {COMPRESSORS}: Connector Quantity | 1 |
| {COMPRESSORS}: Connector Shape | Round |
| {COMPRESSORS}: Discharge Port Inside Diameter | 8 |
| {COMPRESSORS}: Distance Between Mounting Holes | 126 |
| {COMPRESSORS}: Distance From Clutch To Mounting Flange | 72.5 |
| {COMPRESSORS}: Mounting Hole Quantity | 4 |
| {COMPRESSORS}: Pulley Belt Type | Serpentine |
| {COMPRESSORS}: Pulley Groove Quantity | 4 |
| {COMPRESSORS}: Pulley Outside Diameter | 110 |
| {COMPRESSORS}: Pulley Ridge Diameter | 3.16 |
| {COMPRESSORS}: Refrigerant Type | HFC-134A |
| {COMPRESSORS}: Terminal Type | Spade |
| {COMPRESSORS}: Wire Gauge Measurement | 130 |
| {EXP VALVES/ORIF TUBE}: Length (mm) | 91 |
| {COMPRESSORS}: Coil Voltage | 12 |
| {COMPRESSORS}: Mounting Type | Tangent |
| {COMPRESSORS}: Oil Filled | PAG 46 |
| {COMPRESSORS}: Switch Included | No |
| {COMPRESSORS}: Mounting Flange Thickness | 10 |
| {COMPRESSORS}: Suction Port Inside Diameter | 26.3 |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00711307470846 |
UNIVERSAL AIR CONDITIONER (UAC) KT4806 Cross References
UNIVERSAL AIR CONDITIONER (UAC) KT4806 Fits Vehicles
- GMC Yukon (2000-2006)
- Chevrolet Tahoe (2000-2006)
- Cadillac Escalade (2002-2006)
