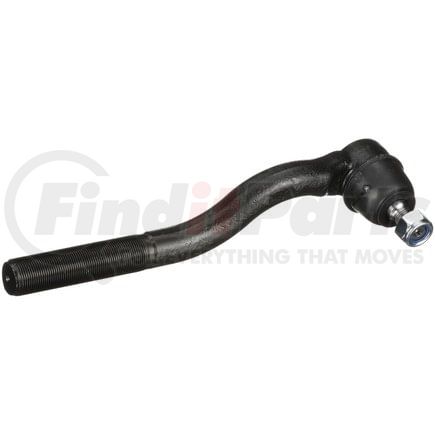

(888) 312-8812 Login SignupDELPHI TA5047 Tie Rod End
Tap to view 8 more
$4399
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
DELPHI TA5047 Part Description
DELPHI TA5047 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 290.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 60 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.984 IN |
| End 2 Thread Diameter | 25.00 MM |
| Height | 84.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.984 IN |
| Tube Diameter | 25.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 3.08 lb |
| Cone Outside Diameter | 18.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 10.551 IN |
| Length - Stud Center to End | 268.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.80 MM |
| Stud Length | 18.80 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.740 IN |
| Stud Length | 0.740 IN |
| Cone Outside Diameter | 0.740 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604282953 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5047 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES800594 |
| Chrysler | 52060053AE |
| TRW | JTE1561 |
| N/A | K52060053AE, GS25614, TO96021, 534-949, MS25614 |
DELPHI TA5047 Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
