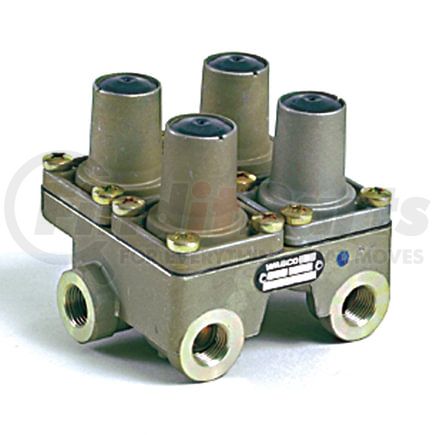

WABCO 9347022500 - Air Brake Pressure Protection Valve - Quadruple Protection, Dynamic, 290.1 psi
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WABCO part description
Product Attributes
| Weight | 2.0613 |
| Calculated Volume (dm³) | 0.99745 |
| Max. operating pressure | 290.1 psi |
| Temperature Range | -40°C to +90°C |
| Closing Pressure Dynamic 21 | 6.7 bar |
| Closing Pressure Dynamic 22 | 97.2 psi |
| Opening pressure 23 | 7 bar |
| Closing Pressure Dynamic 23 | 97.2 psi |
| Opening pressure 22 | 7 bar |
| Closing Pressure Dynamic 24 | 97.2 psi |
| Opening pressure 21 | 7 bar |
| Charging Pressure | 3.5 bar |
| Type | dynamic |
| Closing Pressure Dynamic 24 | 97.2 psi |
| Size | 97 x 113 x 91 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 1 | M22 x 1.5 |
| Opening Pressure Circuit 1+2 | 7.0 + 7.0 bar |
| Port thread 4 | M16 x 1.5 |
| Opening pressure 24 | 7 bar |
| Port thread 24 | M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Pressure Sensor | No |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
