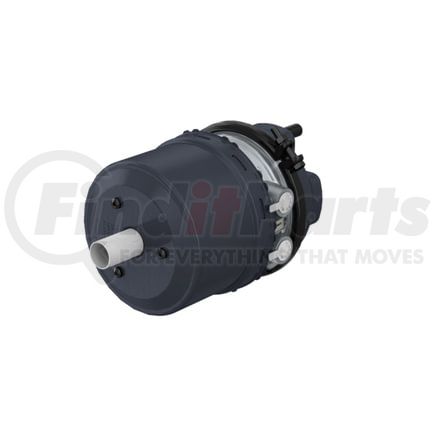

(888) 312-8812 Login SignupWABCO 9254813350 Air Brake Spring Brake Actuator - Tristop Series, Disc, 24/24
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 9254813350 Part Description
WABCO 9254813350 Specifications
Product Attributes
| Max. operating pressure | 147.94 / 123.28 psi |
| Return-Spring Force | 200 N |
| Weight | 18.47 |
| Type | 24/24 |
| Total Length | 257.0 mm |
| Calculated Volume (dm³) | 11.02 |
| Release Pressure | 5.1 bar |
| Push-Rod Length | 15 mm |
| Bolt Lengths | 43.0 mm |
| Temperature Range | -40°C to +80°C |
| Output Force M | 8600 N |
| Bolt Threads | M16 x 1.5 |
| Push-rod thread | Ball R8 |
| Port thread 11 | M16 x 1.5 JED - 464 |
| Size | 340 x 180 x 180 |
| Stroke | 65/64 mm |
| Port threads | M16 x 1.5 |
| Type Of Operation | Disc |
| Distance between bolts | 120.6 mm |
WABCO 9254813350 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9254813350 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
