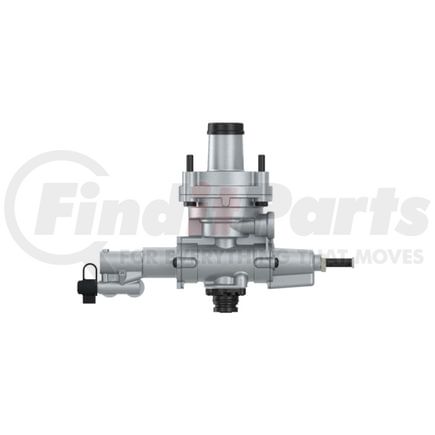

(888) 312-8812 Login SignupWABCO 4757110990 Air Brake Valve - Load Sensing Valve - Pneumatic, Dynamic
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 4757110990 Part Description
WABCO 4757110990 Specifications
Product Attributes
| Operational Range | 0.35 to 7.2 bar |
| Max. operating pressure | 13.0 bar |
| Max. operating pressure | 13.0 bar |
| Range Of Adjustment | 0.35 to 7.2 bar |
| Size | 324 x 222 x 124 |
| Regulating Ratio | 1:8 |
| Mounting | 4x M8 |
| Inlet Pressure | 10.0 bar |
| Break Point | 0.5 bar |
| Port Thread 41 | M16 x 1.5 JED-388 |
| Port Thread 42 | M16 x 1.5 JED-388 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED - 152 |
| Temperature Range | -40°C to +80°C |
| Weight | 4.2108 |
| Control Pressure | 13 bar |
| Distance between bolts | 84x84 mm |
| Calculated Volume (dm³) | 8.9191 |
| Type | Pneumatic |
| Port thread 4 | M16 x 1.5 JED - 388 |
| Type Of Operation | Dynamic |
| Exhaust | Snap on contour JED - 463 |
WABCO 4757110990 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4757110990 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
