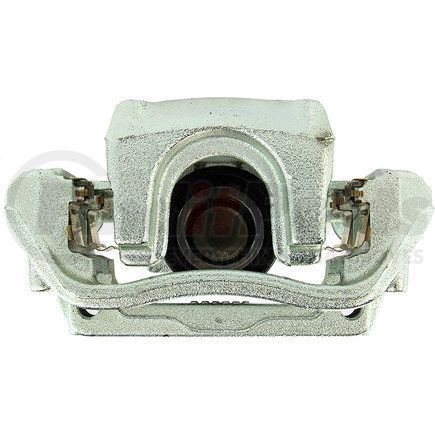

Centric 141.07504 - Centric Semi-Loaded Brake Caliper
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Semi-Loaded Brake Caliper
Application Summary
Maserati Ghibli 2016-2014
Features & Benefits
- Remanufactured to meet the most exacting standards for reliable performance. 100% pressure tested & inspected to ensure proper operation & fitment. Treated with anti-corrosion finish. Comes without brake pads. Includes hardware and brackets
Centric Calipers; Centric Parts loaded caliper; Centric; Centric Parts; CentricParts; Semi-Loaded Caliper; Centric Semi-Loaded Calipers
Product Attributes
| Pad Wear Sensor Included | No |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Hardware Included | No |
| Casting Number | B96300; C068; |
| Pads Included | No |
| Caliper Casting Material | Cast Iron |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Friction Materials Standards Institute Pad Number | 10x.18510 |
| Bleeder Thread Diameter | 10.000 MM |
| 7609 | 42.000 MM |
| Inlet Fitting Type | Bubble |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| 9544 | M10-1.00 |
| 9558 | M10-1.00 |
| Axle Leading/trailing [cntrc] | Trailing |
| Bare Bracket Weight [cntrc] Lbs | 2.55 |
| Bare Caliper Body Weight [cntrc] Lbs | 4.80 |
| Bleeder Install Thread Count [cntrc] In | 5.5 |
| Bleeder Screw Included [cntrc] | Yes |
| Body Air Gap [cntrc] | 62.5mm |
| Bracket # [cntrc] | 743.07503 |
| Bracket Air Gap [cntrc] | 26.0mm |
| Bracket Required [cntrc] | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.34024 |
| Caliper Manufacturer [cntrc] | BREMBO |
| Car Position [cntrc] | Left Rear |
| Finish [cntrc] | Rust Preventative |
| Hardware Kit# [cntrc] | 117.67021 |
| Mount Spread - Ctr2ctr [cntrc] | 120.0mm |
| Mount Thread Size [cntrc] Mm | M12-1.50 |
| New Or Ramanufactured [cntrc] | Remanufactured |
| Published Bore Size [cntrc] | 42 |
| Root Core# [cntrc] | 07504 |
| Rust Preventative Coating [cntrc] | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8412909085 |
| NAFTA Preference Criterion Code | B |
| Original Equipment Manufacturer | DGKG |
| OEM's Part Number | 670031440 |
| UPC | 00889590323238 |
Fits Vehicles
- Maserati Ghibli (2014-2016)
