Delphi TA2769 - Tie Rod End
$6499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

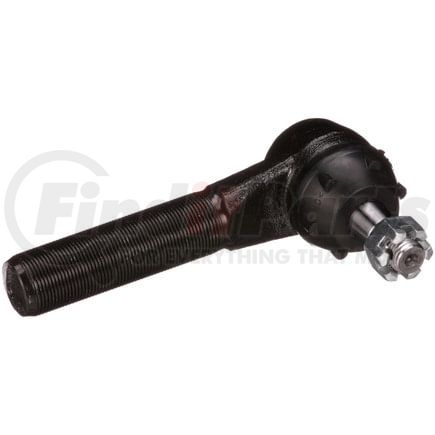

Tie Rod End
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 156.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 93.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | No |
| Weight | 1.76 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 138.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 1.000 IN |
| Grade Type | Standard |
| Locking Nut Included | Yes |
| End 1 Thread Diameter | 25.40 MM |
| End 2 Thread Diameter | 0.551 IN |
| Length Stud Center to End | 5.433 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| UPC | 00689604296776 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Ford F-150 (1995)
- Ford F-250 HD (1997)
- Ford F-350 (1985-1997)
- Ford F-250 (1989-1996)
