A-1 Cardone 65-7039 - Driveshaft / Prop Shaft
- Part Number
- 65-7039
- Manufacturer
- A-1 CARDONE
- Description
-
Driveshaft / Prop Shaft
details
$47099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
A-1 CARDONE part description
Product Description
Driveshaft / Prop Shaft
Application Summary
Subaru Legacy 1999-94
Features & Benefits
- Built to match O.E. form, fit and function.
- 100% NEW universal joints are installed to ensure proper fit and optimal performance.
- All slip yokes are lubricated to prevent premature wear.
- Units are 100% dynamically balanced at 3200 RPMs for vibration-free operation and increased joint life.
Prop Shaft, Drive shaft, Driveshaft, shaft
Product Attributes
| Product Condition | New |
| Greasable | No |
| Drive Shaft Material | Steel |
| E-waste | No |

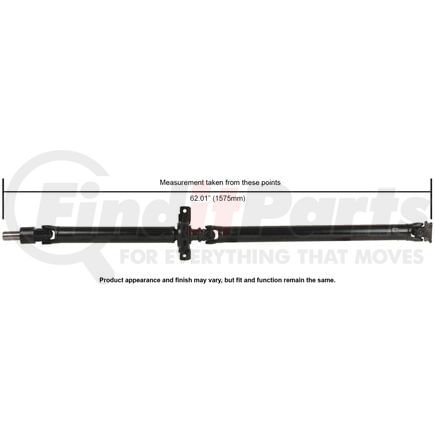

| Measurement Method | Measurement taken from end of flange face to end of input shaft |
| Tubing Outer Diameter (in) | 2.50 |
| Length (in) | 62.01 |
| Length (mm) | 1575 |
| Tubing Outer Diameter (mm) | 64 |
| Features and Benefits | Units are 100% dynamically balanced at 3200 RPMs for vibration-free operation and increased joint life. |
| Compressed Length | 1575.00 MM |
| Compressed Length | 62.01 IN |
| CV Joints Included | No |
| End 1 Type | Slip Yoke |
| End 2 Type | Bolt On |
| Grade Type | Regular |
| Grease Fitting Included | No |
| 9528 | Yes |
| Pre-Greased | Yes |
| Shaft Diameter | 63.50 MM |
| Shaft Diameter | 2.50 IN |
| Shaft Material | Steel |
| Slip Yoke | Yes |
| Universal Joints Included | Yes |
| Drive Shaft Type | Universal Joint |
| Package Contents | Prop Shaft; Instruction Sheet |
| Contains Electronic Components | No |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
| FAQ_Q1 | What causes prop shaft vibration? |
| FAA_A1 | The most common causes of prop shaft vibrations are worn joints, an unbalanced drive shaft, poor joint lubrication, and a bent or twisted shaft. |
| FAQ_Q2 | Are your shafts balanced? Why is it necessary? |
| FAA_A2 | Each shaft is precisely balanced before boxing. Prop shaft balance is necessary for proper driveline operation. An unbalanced shaft can cause premature wear on other major components such as your transmission and rear differential. |
| FAQ_Q3 | How is a prop shaft balanced? |
| FAA_A3 | This procedure entails the distribution of mass in the rotating prop shaft. The shaft is measured and altered where necessary to ensure that vibration does not occur during operation. |
| FAQ_Q4 | Do all vehicles have prop shafts? |
| FAA_A4 | Not all vehicles will have a prop shaft. Prop shafts are most commonly found on all-wheel-drive and rear- wheel-drive vehicles. |
| FAQ_Q5 | What is prop shaft phasing? |
| FAA_A5 | Phasing is a used to describe the alignment of the yokes with each other at both ends of the prop shaft. The phase angle is the rotational position of each yoke on a prop shaft. |
| FAQ_Q6 | What is a universal joint? |
| FAA_A6 | A universal joint is designed to allow prop shafts to move with suspension travel while the shaft is moving. This allows power to be transmitted when the prop shaft is angled between the transmission and differential. |
Additional Information
| Remanufactured Part | Y |
| Warranty Distance | 18000 |
| Warranty Distance UOM | DH |
| Warranty Special UOM | TX |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708996805 |
| Canadian Harmonizing Tariff Code | 8708509990 |
| UPC | 00884548245310 |
Part Interchanges
Fits Vehicles
- Subaru Legacy (1994-1999)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
