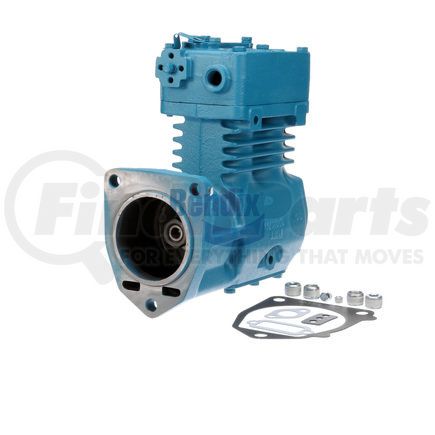

(888) 312-8812 Login SignupBENDIX 5002865 Tu-Flo® 550 Air Brake Compressor - Remanufactured, Flange Mount, Engine Driven, Water Cooling, For Mack Extended Applications
Tap to view 5 more
MSRP: $974.96
$91099
Save $63.97
+$833.33 core deposit
Total price w/ core: $1,744.32
In Stock
Get it by Friday, Jan 2
BENDIX 5002865 Part Description
Manufacturer
Product Description
Compressor
Features & Benefits
- Provides and maintains air under pressure in order to operate devices in the air brake and/or auxiliary air systems
- A two-cylinder, single-stage reciprocating compressor consisting of the cylinder head and crankcase assemblies
- Equipped with a discharge line safety valve to protect the compressor head in the event of a discharge line freeze-up
- Engineered to meet the highest quality standards for maximum reliability
- Designed to deliver consistent quality and performance even under extreme operating conditions
- All Bendix air brake compressors are 100% end-of-line tested to ensure quality and reliability
Courtesy of Bendix – All rights reserved
Bendix Tu-Flo® 550 Series Air Brake Compressor
Engineered to offer better performance and efficiency, the Bendix Tu-Flo® 550 Series air brake compressor is all you need to restore the like-new condition of your truck's air brake system. It is a part of Bendix's comprehensive lineup of new and reman compressors designed to help fleets and vehicle owners extend their vehicle's service life and reduce their total cost of vehicle ownership.
BENDIX 5002865 Specifications
Product Attributes
| Bore Diameter | 2.78 in. |
| Cooling Type | Water |
| Cylinder Quantity | 2 |
| Discharge Port Diameter | 1/2 in. - 14 NPT |
| Governor Port Diameter | 1/8 in. - 27 NPT |
| Mounting Type | Flange Mount |
| New Or Remanufactured | Remanufactured |
| Notes | Engine Oil Feed |
| Oil Port Diameter | 1/8 in. - 27 NPT |
| Operation | Engine Driven |
| Rated Displacement | 13.2 CFM @ 1250 RPM |
| Recommended Use | For Mack Extended Applications |
| Series | Tu-Flo® 550 |
| Stroke Length | 1-1/2 in. |
| Water Port Diameter | 1/2 in. - 14 NPT |
Additional Information
| Core Class | 1F |
| Core Group | 1F |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8414801625 |
| UPC | 07894294760336 |
| VMRS Code | 013009001 |
BENDIX 5002865 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 5002865X |
| Euclid | E-BN5002865X |
BENDIX 5002865 Cross References
We have 1 alternatives for the 5002865 by BENDIX:
BENDIX 5002865 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX 5002865 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
