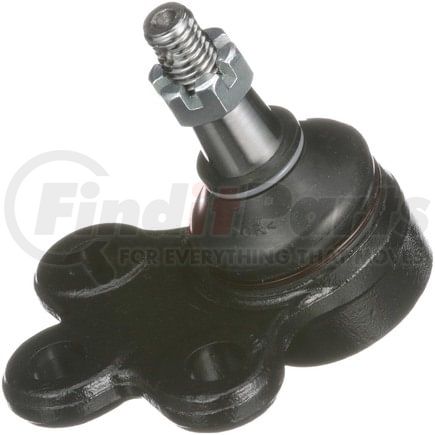

Delphi TC5401 - Ball Joint
$4299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.126 IN |
| Maximum Outside Diameter | 54.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.563 IN |
| Castle Nut Included | Yes |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 54 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 3.780 IN |
| Height | 96.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| 4966 | 0.807 IN |
| Stud Thread Length | 20.5 MM |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.72 IN |
| Stud Tapered End 2 Diameter | 18.3 MM |
| 9213 | 0.606 IN |
| Stud Tapered End 1 Diameter | 15.4 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Pitch | 0.7 MM |
| Length | 54.00 MM |
| Length | 2.130 IN |
| Stud Thread Diameter | 14.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604289648 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Cadillac DeVille (1995-1996)
- Oldsmobile Toronado (1986-1992)
- Oldsmobile Aurora (1995-1996)
- Cadillac Seville (1986-1996)
- Cadillac Eldorado (1986-1996)
- Cadillac Allante (1987-1993)
- Buick Riviera (1986-1993, 1995-1996)
- Buick Reatta (1988-1991)
