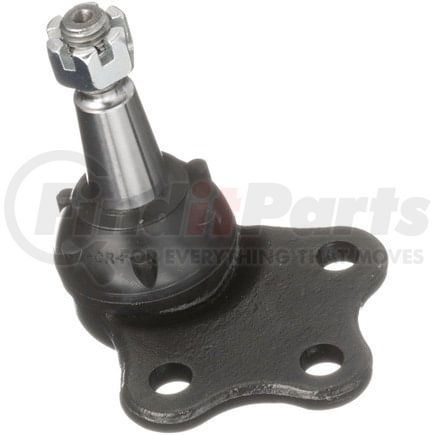

Delphi TC5369 - Ball Joint
$4649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 105.7 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.772 IN |
| Mounting Bolt Length | 45.00 MM |
| Washers Included | Yes |
| Height | 3.819 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.866 IN |
| 839 | 17mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 10.00 MM |
| 9203 | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 28.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.6 IN |
| Stud Tapered End 2 Diameter | 15.25 MM |
| 9213 | 0.768 IN |
| Stud Tapered End 1 Diameter | 19.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 80.00 MM |
| Length | 3.150 IN |
| Stud Thread Diameter | 0.47 IN |
| Height | 97.00 MM |
| Stud Thread Length | 22 MM |
| 9202 | 0.390 IN |
| 9207 | 1.100 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604290125 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
- MOOG Chassis Products K5333
- General Motors 25672870
- General Motors 25672871
- General Motors 25696334
- General Motors 25702221
- General Motors 25703055
- General Motors 25703056
- General Motors 25746324
- General Motors 25746325
- General Motors 25766508
- MOOG Chassis Products CK620291
- MOOG Chassis Products RK620291
- MAS Industries 531-369
- TRW JBJ951
- MK5333
- BJ92265XL
- 531-369
- GK5333
- B5333
Fits Vehicles
- Pontiac Grand Prix (2004-2007)
- Pontiac Bonneville (2000-2005)
- Oldsmobile Aurora (1997-1999, 2001-2003)
- Cadillac Seville (1998-2004)
- Cadillac DeVille (2000-2005)
- Buick Riviera (1997-1999)
- Buick Park Avenue (1997-2005)
- Buick LeSabre (2000-2005)
