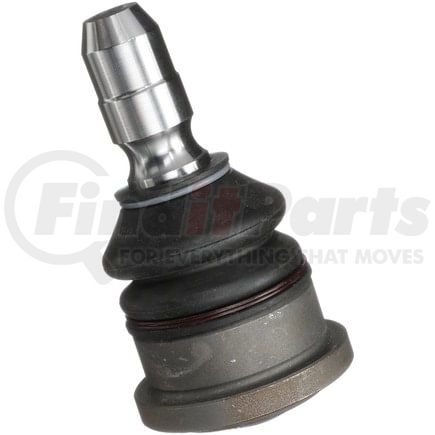

DELPHI TC5359 Part Description
DELPHI TC5359 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Upper |
| Material | Steel |
| Color | Gray |
| Stud Thread Diameter | 19.5 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 49.8 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 2.815 IN |
| Mounting Bolt Length | 71.50 MM |
| Washers Included | No |
| Height | 2.961 IN |
| Height | 75.20 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 1.047 IN |
| Mounting Bolt Head Diameter | 26.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 1.319 IN |
| Mounting Bolt Thread Length | 33.50 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Stud Thread Diameter | 0.77 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604289556 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC5359 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | CK620668, K500109, K500169, RK620668 |
| Ford | 1L2Z 5500-AC |
| MAS Industries | CB85507, CB85507PR |
| Dorman | 521-381, 523-677 |
| Mevotech | CMS40126 |
| TRW | JBJ503 |
| N/A | MS40517, BJ85536, BJ85536XL |
DELPHI TC5359 Fits Vehicles
- Mercury Mountaineer (2002-2005)
- Lincoln Aviator (2003-2005)
- Ford Explorer (2002-2005)
