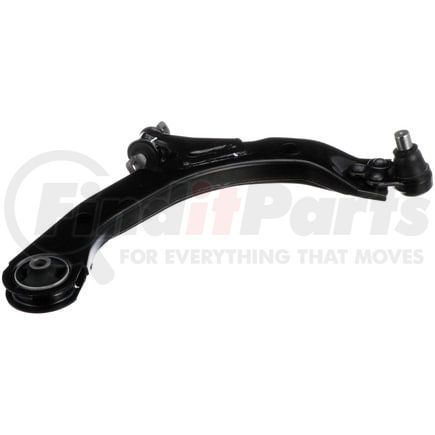

Delphi TC5326 - Control Arm and Ball Joint Assembly
$8049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 16.929 IN |
| Control Arm Maximum Width | 430.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.787 IN |
| Ball Joint Thread Diameter | 20.00 MM |
| Ball Joint Stud Length | 2.559 IN |
| Ball Joint Stud Length | 65.00 MM |
| Control Arm Maximum Length | 17.717 IN |
| Control Arm Maximum Length | 450.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 20.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.787 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604288795 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Chevrolet HHR (2008-2010)
- Pontiac G5 (2007-2010)
- Pontiac Pursuit (2005-2006)
- Chevrolet Cobalt (2005-2010)
- Saturn Ion (2003-2007)
