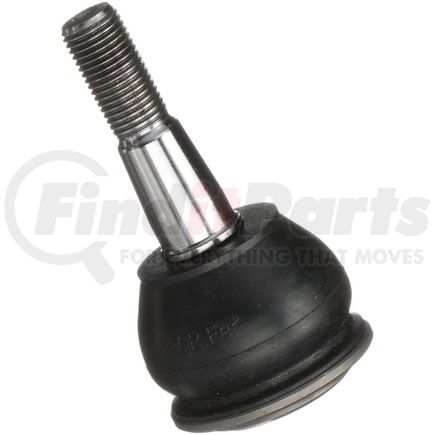

Delphi TC5270 - Ball Joint
$1549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 100.3 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.476 IN |
| Mounting Bolt Length | 37.50 MM |
| Washers Included | No |
| Height | 4.075 IN |
| Height | 103.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.984 IN |
| Stud Thread Length | 25 MM |
| 839 | 19mm |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 23.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.862 IN |
| Mounting Bolt Head Diameter | 21.90 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| 9207 | 1.083 IN |
| Mounting Bolt Thread Length | 27.50 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.906 IN |
| Stud Tapered End 2 Diameter | 23 MM |
| 9213 | 0.661 IN |
| Stud Tapered End 1 Diameter | 16.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.010 IN |
| Length | 103.00 MM |
| Stud Thread Diameter | 0.55 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604288269 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Lexus GS460 (2008-2011)
- Lexus GS450h (2007-2011)
- Lexus GS300 (2006)
- Lexus GS430 (2006-2007)
- Lexus IS300 (2016-2021)
- Lexus IS350 (2011-2021)
- Lexus GS350 (2007-2011)
- Lexus IS250 (2006-2015)
