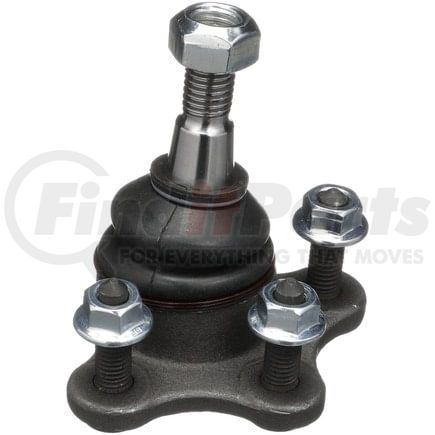

Delphi TC5258 - Ball Joint
$4399
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 114 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.319 IN |
| Mounting Bolt Length | 33.50 MM |
| Washers Included | No |
| Height | 4.110 IN |
| Height | 104.40 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.894 IN |
| Stud Thread Length | 22.7 MM |
| 839 | 13mm |
| Mounting Type | Press-In |
| Distance Between Mounting Holes | 22.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| 9203 | 0.709 IN |
| Mounting Bolt Head Diameter | 18.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mounting Bolt Thread Diameter | 18.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.768 IN |
| Stud Tapered End 2 Diameter | 19.5 MM |
| 9213 | 0.638 IN |
| Stud Tapered End 1 Diameter | 16.2 MM |
| Stud Thread Pitch | 2 MM |
| Mounting Bolt Thread Diameter | 0.710 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604288023 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Isuzu i-370 (2007-2008)
- Isuzu i-350 (2006)
- Chevrolet Colorado (2004-2012)
- GMC Canyon (2004-2012)
