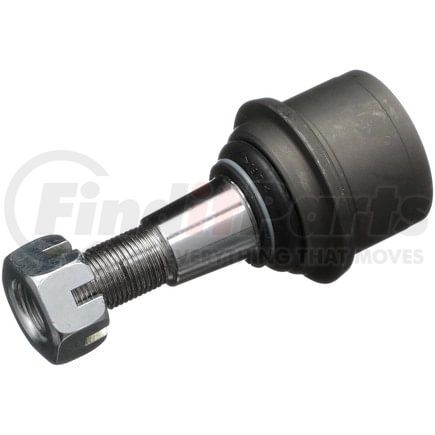

Delphi TC5255 - Ball Joint
$3799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 100 MM |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.106 IN |
| Height | 104.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.866 IN |
| Stud Thread Length | 22 MM |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 37.00 MM |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.768 IN |
| Stud Tapered End 2 Diameter | 19.5 MM |
| 9213 | 0.638 IN |
| Stud Tapered End 1 Diameter | 16.2 MM |
| Stud Thread Pitch | 2 MM |
| Length | 80.00 MM |
| Length | 3.150 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604287927 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Chevrolet C5500 Kodiak (2005-2009)
- GMC C5500 Topkick (2005-2009)
- GMC C4500 Topkick (2005-2009)
- Chevrolet C4500 Kodiak (2005-2009)
- Ford F-550 Super Duty (2005-2018)
- Ford F-450 Super Duty (2005-2018)
