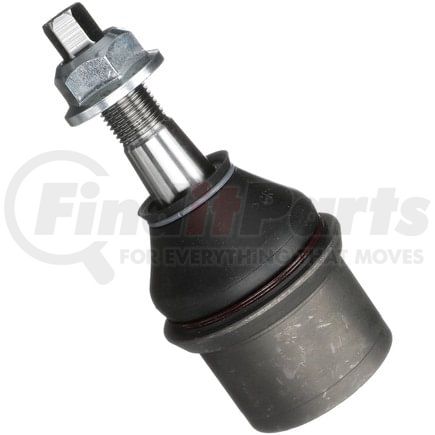

(888) 312-8812 Login SignupDELPHI TC5247 Ball Joint
Tap to view 5 more
$3949
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5247 Part Description
DELPHI TC5247 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Silver |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 49 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.425 IN |
| Height | 87.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Stud Thread Length | 0.807 IN |
| Stud Thread Length | 20.5 MM |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.732 IN |
| Stud Tapered End 2 Diameter | 18.6 MM |
| Stud Tapered End 1 Diameter | 0.583 IN |
| Stud Tapered End 1 Diameter | 14.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 49.00 MM |
| Length | 1.930 IN |
| Stud Thread Diameter | 0.55 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604287712 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5247 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K80765 |
| Chrysler | 5143570AA |
| MAS Industries | 536-392 |
| TRW | JBJ910 |
| N/A | 05143570AA, MK80765, 536-392, GK80765, TXMS25554, BJ81315 |
DELPHI TC5247 Fits Vehicles
- Chrysler Aspen (2007-2009)
- Dodge Durango (2004-2009)
