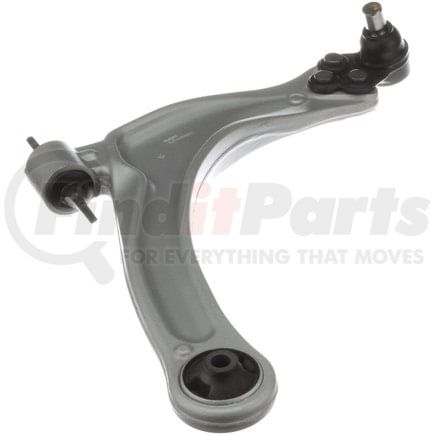

Delphi TC5190 - Control Arm and Ball Joint Assembly
$10049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Adjustable | No |
| Control Arm Maximum Width | 16.220 IN |
| Control Arm Maximum Width | 412.00 MM |
| Ball Joint Thread Diameter | 0.787 IN |
| Ball Joint Thread Diameter | 20.00 MM |
| Ball Joint Stud Length | 2.559 IN |
| Ball Joint Stud Length | 65.00 MM |
| Control Arm Maximum Length | 16.339 IN |
| Control Arm Maximum Length | 415.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.559 IN |
| Mounting Hole Diameter | 14.20 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Greasable | No |
| Thread Diameter | 20.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.787 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604288498 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Pontiac Pursuit (2005-2006)
- Pontiac G5 (2007-2010)
- Chevrolet HHR (2006-2011)
- Chevrolet Cobalt (2005-2010)
