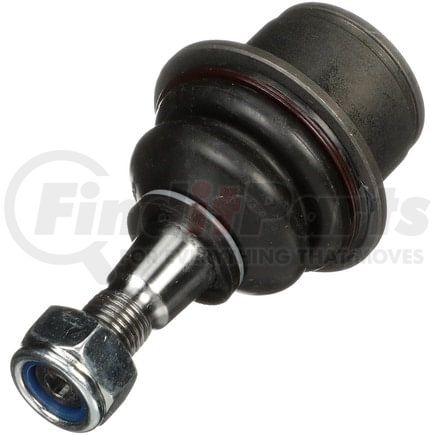

Name: Delphi TC5042 Ball Joint
SKU: tc5042
Price: 31.99 USD
Availability: InStock

DELPHI part description

Product Description

Ball Joint

Product Attributes

Item Grade	Standard Replacement
Position(s)	Front Lower Rearward
Material	Steel
Maximum Outside Diameter	2.283 IN
Maximum Outside Diameter	58.00 MM
Color	Gray
Stud Thread Diameter	0.551 IN
Stud Thread Diameter	14 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	58 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Washers Included	No
Height	3.953 IN
Height	100.40 MM
Nuts Included	Yes
Mounting Hole Quantity	0
Adjustable	No
Greasable	No
4966	0.969 IN
Stud Thread Length	24.6 MM
839	6mm
Stud Type	Threaded
Mounting Type	Press-In
Dust Boot Material	Rubber
Mount Plate Included	No
Tapered Stud	Yes
9212	0.866 IN
Stud Tapered End 2 Diameter	22 MM
9213	0.61 IN
Stud Tapered End 1 Diameter	15.5 MM
Stud Thread Pitch	1.5 MM

Additional Information

Harmonized Tariff Code (Schedule B)	8708807000
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604283066
VMRS Code	016001015
UNSPSC	25174203

Part Interchanges

Fits Vehicles

Dodge Challenger (2008-2023)
Dodge Charger (2006-2023)
Chrysler 300 (2005-2023)
Dodge Magnum (2005-2008)
