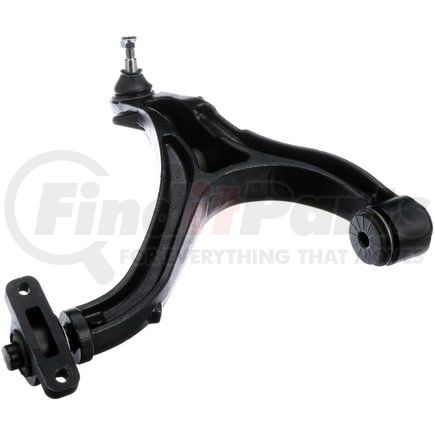

Delphi TC3716 - Control Arm and Ball Joint Assembly
$14599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Ball Joint Mounting Type | Press In |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 4.591 IN |
| Control Arm Maximum Width | 116.60 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 1.043 IN |
| Ball Joint Stud Length | 26.50 MM |
| Control Arm Maximum Length | 479.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Control Arm Maximum Length | 18.878 IN |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604286203 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- MOOG Chassis Products RK621374
- Chrysler 52089 980AI
- MAS Industries CB96004
- MAS Industries CB96004PR
- Dorman 521-064
- MOOG Chassis Products RK621566
- Chrysler 52089 980AD
- Chrysler 52089 980AF
- Chrysler 52089 980AG
- Chrysler 52089980AA
- Chrysler 52089980AB
- Chrysler 5290 634AA
- TRW JTC2666
- CK621374
- GS25171
- CMS25171
Fits Vehicles
- Jeep Commander (2006-2010)
- Jeep Grand Cherokee (2005-2010)
