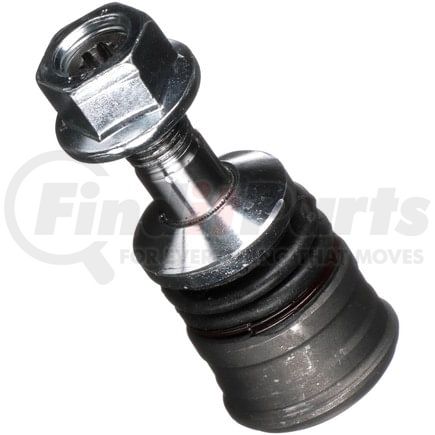

Delphi TC3681 - Ball Joint
$12249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 87.7 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.240 IN |
| Mounting Bolt Length | 31.50 MM |
| Washers Included | No |
| Height | 3.701 IN |
| Height | 94.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.866 IN |
| Stud Thread Length | 22 MM |
| 839 | 16mm |
| Distance Between Mounting Holes | 35.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 1 |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 1.047 IN |
| Mounting Bolt Head Diameter | 26.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| 9213 | 0.61 IN |
| Stud Tapered End 1 Diameter | 15.5 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 106.00 MM |
| Length | 4.170 IN |
| Stud Thread Diameter | 0.47 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604286012 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz C350e (2016-2018)
- Mercedes-Benz C300 (2015-2018)
