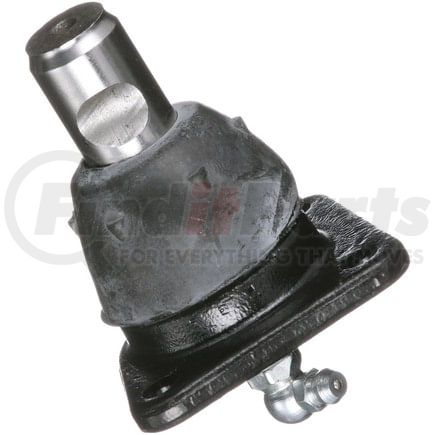

Delphi TC2583 - Ball Joint
$3649
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.752 IN |
| Maximum Outside Diameter | 44.50 MM |
| Color | Black |
| Stud Thread Diameter | 0.5 IN |
| Stud Thread Diameter | 12.7 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 84 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.350 IN |
| Mounting Bolt Length | 34.30 MM |
| Washers Included | No |
| Height | 4.843 IN |
| Height | 123.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.571 IN |
| Stud Thread Length | 14.5 MM |
| 839 | 13mm |
| Distance Between Mounting Holes | 42.70 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.313 IN |
| Mounting Bolt Shank Diameter | 7.90 MM |
| 9203 | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Pitch | 0.94 MM |
| 9207 | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mounting Bolt Thread Diameter | 7.90 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.622 IN |
| Stud Tapered End 2 Diameter | 15.8 MM |
| 9213 | 0.543 IN |
| Stud Tapered End 1 Diameter | 13.8 MM |
| Stud Threads Per Inch | 20 |
| Stud Thread Pitch | 0.78 MM |
| Length | 78.00 MM |
| Length | 3.070 IN |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604289549 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Pontiac Trans Sport (1992-1996)
- Oldsmobile Silhouette (1992-1996)
- Chevrolet Lumina APV (1992-1996)
