STANDARD IGNITION part description

Product Description

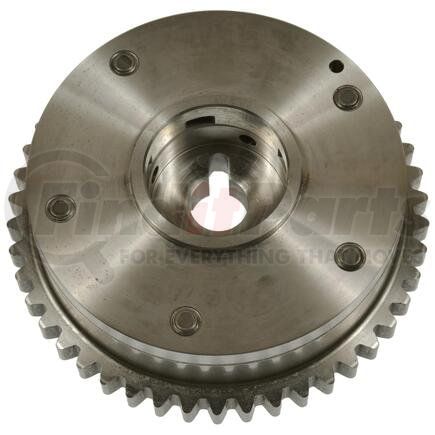

Engine Variable Valve Timing Sprocket

Features & Benefits

  • Direct-fit OE replacement effectively restores and maximizes engine horsepower and torque curves while reducing emissions and improving vehicle efficiency
  • Precision-machined to ensure accurate variable valve timing, correct rough idle, and restore drivability
  • OE-matching sprocket tooth profiles result in quiet operation
  • Extensively designed to lower leakage and lash, which improves performance and leads to noise-free operation
  • Undergoes 100% end-of-line testing to meet or exceed OE performance
  • With hundreds of VVT components in our line, we provide aftermarket-leading coverage for the high-tech, high-failure VVT category

Product Attributes

Functions Engine Variable Valve Timing Sprocket
Adjustable No
Gear Material Metal
Gear Type Crankshaft
Hardware Included No
Inside Diameter (in) 1.13
Inside Diameter (MM) 28.702
Keyway Notch Yes
Lug Hole Diameter 0.46
Lug Hole Diameter - Mm 11.684
Mounting Hole Quantity 1
Number Of Gears 1
Number Of Rows 1
Number of Teeth 46
Number Of Timing Marks 3
Outside Diameter (In) 3.58
Outside Diameter (MM) 90.932
Thickness - Inches 0.29
Thickness - mm 7.366
Tooth Width (in) 0.29
Tooth Width (mm) 7.366

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8483901050
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00033086282961

Part Interchanges

Fits Vehicles

  • Acura TLX (2021-2022)
  • Acura RDX (2019-2022)
  • Honda Accord (2018-2022)
  • Honda Civic (2017, 2019-2020)
