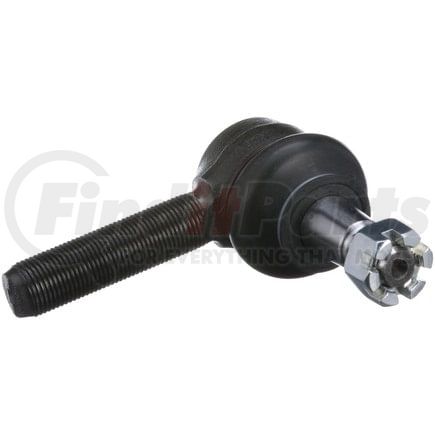

Delphi TA5398 - Tie Rod End
$2999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner, Left Inner, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 110.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 46 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.563 IN |
| Height | 87.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | No |
| Weight | 1.08 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length Stud Center to End | 3.445 IN |
| Length Stud Center to End | 87.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.688 IN |
| End 2 Thread Diameter | 14.30 MM |
| End 1 Thread Diameter | 17.48 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604288207 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Dodge P200 Van (1973-1974)
- Dodge P300 Van (1960-1964, 1966-1974)
- Dodge W200 Pickup (1957-1959)
- Dodge D100 Pickup (1957-1959)
- Dodge C-1 Truck (1954-1955)
- Dodge C-4 (1956)
- Dodge B-4 Truck (1953)
- Chrysler C36 (1942)
- Dodge B-1 Truck (1948-1949)
- Chrysler C33 (1942)
- Dodge B-1 (1948-1949)
- Dodge Custom (1946-1948)
- Dodge Deluxe (1946-1948)
- Chrysler C34 (1942)
- Dodge C-3 (1955)
- Dodge P300 Series (1957-1959)
- Dodge C-1 (1954-1955)
- Dodge B-2 (1950)
- Dodge B-3 (1951-1952)
- Chrysler Windsor (1941-1942)
- Dodge Custom Series D-22 (1942)
- Chrysler Royal Series (1946-1948)
- Chrysler Town & Country (1941-1942, 1946-1948)
- Chrysler Imperial C-40 (1946-1948)
- Chrysler Windsor Series (1946-1948)
- Chrysler Crown Imperial (1941-1942)
- Chrysler Saratoga (1941-1942)
- Chrysler Royal (1941-1942)
- Chrysler New Yorker (1941-1942, 1946-1948)
- Chrysler Saratoga Series (1946-1948)
- DeSoto S-11 (1946-1948)
- Dodge P200 (1972)
- Dodge P300 (1961-1972)
- Dodge M300 (1968-1974)
- Dodge D300 Pickup (1957-1959, 1968-1971)
- Dodge D100 Series (1960)
- Dodge D200 Series (1960-1967)
- Dodge D200 Pickup (1957-1959, 1968-1971)
- Dodge Coronet (1955-1956)
