Name: Delphi TA5391 Tie Rod End
SKU: ta5391
Price: 27.49 USD
Availability: InStock

DELPHI part description

Product Description

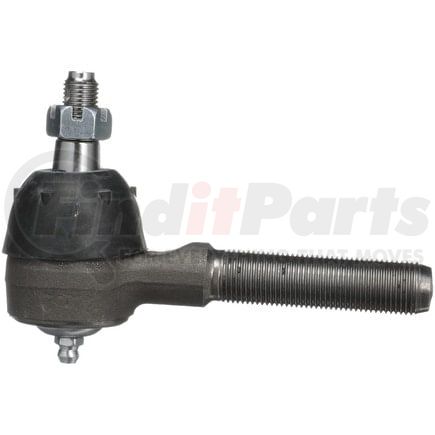

Tie Rod End

Product Attributes

Position(s)	Left Outer, Outer, Right Inner. For the position specific to your vehicle, refer to the Applications.
Item Grade	Standard Replacement
Length	125.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	38 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.438 IN
Height	82.00 MM
Grade Type	Standard
Housing Material	Steel
Adjustable	No
Greasable	Yes
Weight	0.88 lb
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
Length Stud Center to End	104.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	20
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.625 IN
End 2 Thread Diameter	11.13 MM
End 1 Thread Diameter	15.88 MM
Length Stud Center to End	4.094 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604287781
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Chevrolet G10 Van (1964)
Chevrolet Corvette (1963-1982)
