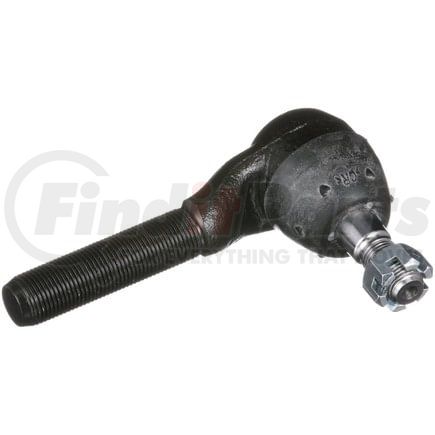

Delphi TA5376 - Steering Tie Rod End - Outer, Non-Adjustable, Steel, Greaseable
$1599
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
Position(s) | Outer |
Item Grade | Standard Replacement |
Length | 134.0 MM |
Color | Black |
End 1 Gender | Male |
End 2 Gender | Male |
Pre-Greased | Yes |
Grease Fitting Included | Yes |
Dust Boot Included | Yes |
Width | 40.0 MM |
Type | Bent |
Mounting Hardware Included | Yes |
End 2 Thread Diameter | 0.688 IN |
End 2 Thread Diameter | 17.4625 MM |
Height | 87.8 MM |
Housing Material | Steel |
36 | 0.688 IN |
Tube Diameter | 17.4625 MM |
Adjustable | No |
Greasable | Yes |
Weight | 1.03 lb |
Cone Outside Diameter | 15.9 MM |
Bearing Material | Plastic |
End 1 Thread Direction | Clockwise (Right) |
End 2 Thread Direction | Clockwise (Right) |
Stud Type | Threaded |
Length Stud Center to End | 4.449 IN |
Length Stud Center to End | 113.0 MM |
Dust Boot Material | Choloroprene Rubber (CR) |
Tie Rod Material | Steel |
End 2 Threads Per Inch | 16 |
End 1 Threads Per Inch | 20 |
End 1 Thread Diameter | 0.5 IN |
End 1 Thread Diameter | 12.7 MM |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708998175 |
Harmonized Tariff Code (HTS) | 8708998180 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
Country of Origin (Primary) | TR |
UPC | 00689604289471 |
VMRS Code | 015004045 |
UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Mercury Monarch (1975-1980)
- Mercury Comet (1975-1977)
- Lincoln Versailles (1977-1980)
- Ford Maverick (1975-1977)
- Ford Granada (1975-1980)
