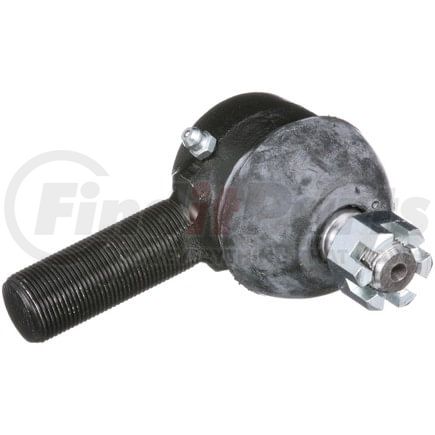

Name: Delphi TA5374 Tie Rod End
SKU: ta5374
Price: 40.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Length	112.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	55 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.875 IN
End 2 Thread Diameter	22.23 MM
Height	86.80 MM
Housing Material	Steel
36	0.875 IN
Tube Diameter	22.23 MM
Adjustable	No
Greasable	Yes
Weight	1.14 lb
Cone Outside Diameter	19.70 MM
Bearing Material	Steel
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	3.386 IN
Length Stud Center to End	86.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.625 IN
End 1 Thread Diameter	15.88 MM
Shank Length	19.70 MM
Stud Length	19.70 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.776 IN
Stud Length	0.776 IN
662	0.776 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604289457
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Dodge W350 (1981-1993)
Dodge W300 (1976-1980)
Dodge W250 (1981-1993)
Dodge W200 (1976-1980)
