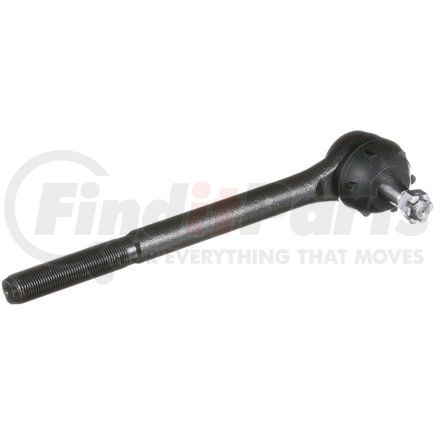

Name: Delphi TA5372 Tie Rod End
SKU: ta5372
Price: 20.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Outer
Item Grade	Standard Replacement
Length	246.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Dust Boot Included	Yes
Width	43 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.687 IN
End 2 Thread Diameter	17.46 MM
Height	89.50 MM
Housing Material	Steel
36	0.787 IN
Tube Diameter	20.00 MM
Adjustable	No
Weight	1.37 lb
Cone Outside Diameter	15.90 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	8.819 IN
Length Stud Center to End	224.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	20
End 1 Thread Diameter	0.437 IN
End 1 Thread Diameter	11.11 MM
Shank Length	15.90 MM
Stud Length	15.90 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.626 IN
Stud Length	0.626 IN
662	0.626 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604289433
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Chevrolet Chevelle (1973)
Pontiac Ventura (1977)
Pontiac Phoenix (1978-1979)
Pontiac LeMans (1973-1977)
Pontiac Grand Prix (1973-1977)
Pontiac Grand Am (1973-1975)
Pontiac Firebird (1975-1979)
Oldsmobile Omega (1978-1979)
Oldsmobile Cutlass Supreme (1973-1977)
Oldsmobile Cutlass Tiara (1976)
Oldsmobile Cutlass Salon (1975-1977)
Oldsmobile Cutlass (1973-1977)
GMC Sprint (1973-1977)
Chevrolet Monte Carlo (1973-1977)
Chevrolet El Camino (1973-1977)
Cadillac Seville (1976-1979)
Buick Skylark (1978-1979)
Buick Regal (1973-1977)
Buick Century (1973-1977)
