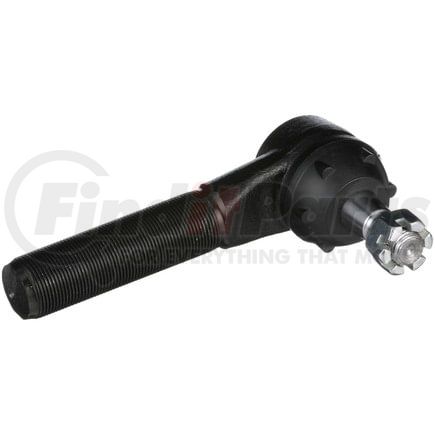

Name: Delphi TA5367 Tie Rod End
SKU: ta5367
Price: 46.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	160.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	45 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	1.000 IN
End 2 Thread Diameter	25.40 MM
Height	95.80 MM
Housing Material	Steel
36	1.000 IN
Tube Diameter	25.40 MM
Adjustable	No
Greasable	Yes
Weight	1.78 lb
Cone Outside Diameter	17.85 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	5.433 IN
Length Stud Center to End	138.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.563 IN
End 1 Thread Diameter	14.29 MM
Shank Length	17.85 MM
Stud Length	17.85 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.703 IN
Stud Length	0.703 IN
662	0.703 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604289396
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Dodge Ram 3500 (1994-1997)
Dodge Ram 2500 (1994-1997)
