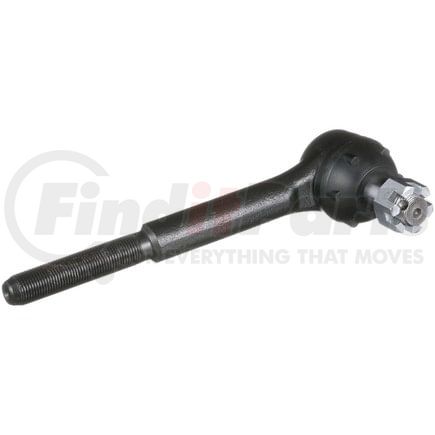

Name: Delphi TA5347 Steering Tie Rod End - LH Outer/RH Inner, Non-Adjustable, Steel, Greaseable
SKU: ta5347
Price: 32.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer, Outer, Right Inner. For the position specific to your vehicle, refer to the Applications.
Item Grade	Standard Replacement
Length	213.0 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	43.0 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.625 IN
End 2 Thread Diameter	15.875 MM
Height	90.8 MM
Housing Material	Steel
36	0.787 IN
Tube Diameter	20.0 MM
Adjustable	No
Greasable	Yes
Weight	1.54 lb
Cone Outside Diameter	19.1 MM
Bearing Material	Plastic
End 2 Thread Direction	Counterclockwise (Left)
Stud Type	Threaded
Length Stud Center to End	7.48 IN
Length Stud Center to End	190.0 MM
Dust Boot Material	Choloroprene Rubber (CR)
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.625 IN
End 1 Thread Diameter	15.875 MM

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604289259
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

GMC 1000 (1966)
Chevrolet C20 Panel (1967)
Chevrolet C30 Panel (1965-1966)
Chevrolet G30 Van (1970)
GMC P35/P3500 Van (1968-1970)
GMC P25/P2500 Van (1968-1970)
GMC C35/C3500 Pickup (1967-1970)
GMC C25/C2500 Pickup (1967-1970)
Chevrolet P30 Van (1968-1970)
Chevrolet P20 Van (1968-1970)
Chevrolet C30 Pickup (1965-1970)
Chevrolet C20 Suburban (1967-1970)
Chevrolet C20 Pickup (1965-1970)
