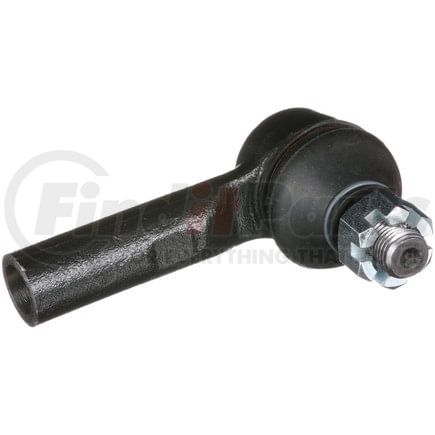

Delphi TA5335 - Tie Rod End
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 112.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 73.70 MM |
| Housing Material | Steel |
| 36 | 0.827 IN |
| Tube Diameter | 21.00 MM |
| Adjustable | No |
| Greasable | No |
| Weight | 0.85 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 3.543 IN |
| Length Stud Center to End | 90.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| 662 | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604289174 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Toyota Van (1989)
