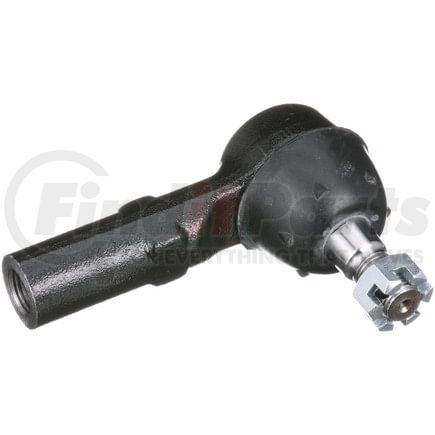

Name: Delphi TA5312 Tie Rod End
SKU: ta5312
Price: 21.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Outer
Item Grade	Standard Replacement
Length	107.00 MM
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	39.5 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	14.29 MM
End 2 Thread Diameter	0.563 IN
Height	83.50 MM
Housing Material	Steel
Tube Diameter	22.00 MM
36	0.866 IN
Adjustable	No
Greasable	Yes
Weight	0.79 lb
Cone Outside Diameter	15.90 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	87.00 MM
Length Stud Center to End	3.425 IN
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	20
End 1 Thread Diameter	0.500 IN
End 1 Thread Diameter	12.70 MM
Shank Length	15.90 MM
Stud Length	15.90 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.626 IN
Stud Length	0.626 IN
662	0.626 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604288986
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Mercury Bobcat (1975-1980)
Ford Mustang II (1974-1978)
Ford Pinto (1973-1980)
