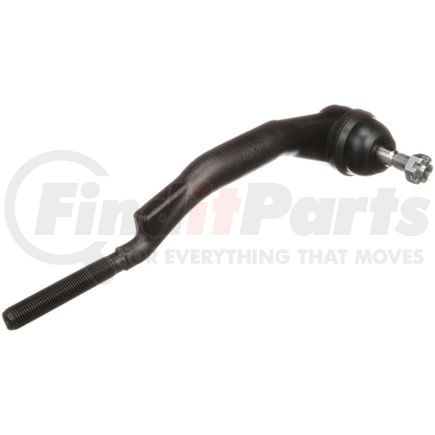

(888) 312-8812 Login SignupDELPHI TA5255 Tie Rod End
Tap to view 8 more
$6049
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 7
DELPHI TA5255 Part Description
DELPHI TA5255 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 307.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 64.5 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 101.70 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 1.024 IN |
| Tube Diameter | 26.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 2.53 lb |
| Cone Outside Diameter | 16.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 11.142 IN |
| Length - Stud Center to End | 283.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| Shank Length | 16.50 MM |
| Stud Length | 16.50 MM |
| Grade | Premium |
| Shank Length | 0.650 IN |
| Stud Length | 0.650 IN |
| Cone Outside Diameter | 0.650 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604287200 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5255 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES800641 |
| General Motors | 19177444 |
| TRW | JTE1593 |
| N/A | MS506106, TO91031PR, 531-029, TO91031, JTE1594 |
DELPHI TA5255 Fits Vehicles
- Cadillac STS (2010-2011)
- Cadillac CTS (2008-2014)
