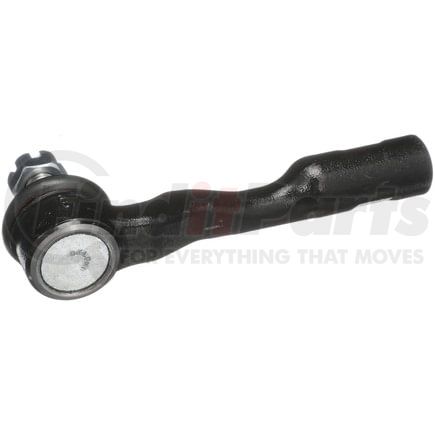

Name: Delphi TA5251 Tie Rod End
SKU: ta5251
Price: 27.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	179.00 MM
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	39 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.709 IN
End 2 Thread Diameter	18.00 MM
Height	72.00 MM
Grade Type	Standard
Housing Material	Steel
36	1.043 IN
Tube Diameter	26.50 MM
Adjustable	No
Greasable	No
Weight	1.36 lb
Cone Outside Diameter	16.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	6.201 IN
Length Stud Center to End	157.50 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	16.00 MM
Stud Length	16.00 MM
Grade	Premium
Shank Length	0.630 IN
Stud Length	0.630 IN
662	0.630 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604287170
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota Tundra (2000-2002)
Toyota Sequoia (2001-2003)
