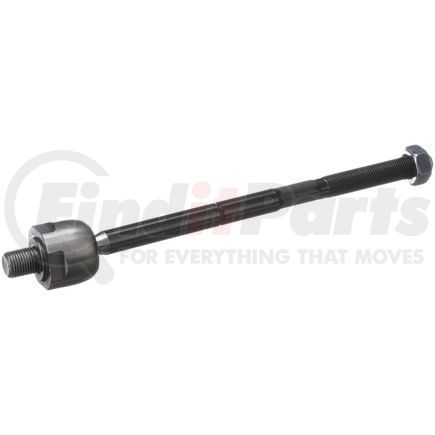

(888) 312-8812 Login SignupDELPHI TA5228 Tie Rod End
Tap to view 5 more
$2399
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 6
DELPHI TA5228 Part Description
DELPHI TA5228 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 281.50 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 38.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 0.571 IN |
| Tube Diameter | 14.50 MM |
| Adjustable | Yes |
| Greaseable | No |
| Weight | 1.43 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.550 IN |
| Grade | Premium |
| End 1 Thread Diameter | 13.97 MM |
| End 2 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604287231 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5228 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | EV800332 |
| General Motors | 10357646 |
| TRW | JAR1215 |
| N/A | MS50713, 15850018, TI91210XL, 535231, GS50713, TI91210, 89060189 |
DELPHI TA5228 Fits Vehicles
- Cadillac CTS (2003-2007)
