DELPHI part description

Product Description

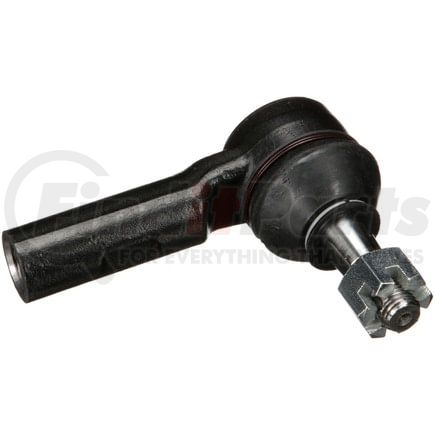

Tie Rod End

Product Attributes

Position(s) Outer
Item Grade Standard Replacement
Length 125.0 MM
Color Black
End 2 Gender Female
Pre-Greased Yes
Grease Fitting Included No
Dust Boot Included Yes
Width 46.6 MM
Type Straight
Mounting Hardware Included Yes
End 2 Thread Diameter 0.669 IN
End 2 Thread Diameter 17.0 MM
Height 91.1 MM
Grade Type Standard
Housing Material High Strength Steel
36 0.984 IN
Tube Diameter 25.0 MM
Adjustable No
Greasable No
Weight 1.5 lb
Cone Outside Diameter 18.9 MM
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Stud Type Threaded
End 2 Thread Pitch 1.5 MM
Length Stud Center to End 4.01 IN
Length Stud Center to End 102.0 MM
Dust Boot Material Choloroprene Rubber (CR)
Tie Rod Material Steel

Additional Information

Harmonized Tariff Code (HTS) 8708998180
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8708998175
Country of Origin (Primary) TR
UPC 00689604287095
VMRS Code 015004045
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Ram 1500 (2011-2012)
  • Dodge Ram 1500 (2006-2010)
