DELPHI part description

Product Description

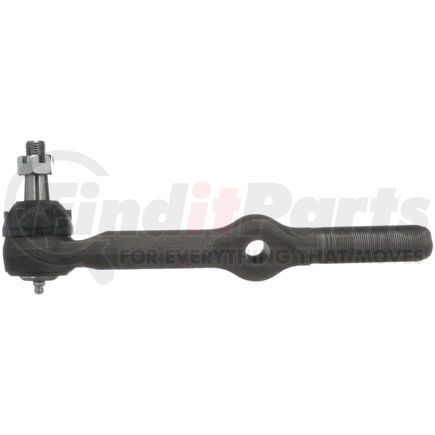

Tie Rod End

Product Attributes

Position(s) At Pitman Arm
Item Grade Standard Replacement
Length 284.00 MM
Color Black
End 1 Gender Male
End 2 Gender Male
Pre-Greased Yes
Grease Fitting Included Yes
Dust Boot Included Yes
Width 45 MM
Type Straight
Mounting Hardware Included Yes
End 2 Thread Diameter 1.000 IN
End 2 Thread Diameter 25.40 MM
Height 96.00 MM
Grade Type Standard
Housing Material Steel
36 1.024 IN
Tube Diameter 26.00 MM
Adjustable No
Greasable Yes
Weight 3.21 lb
662 0.709 IN
Cone Outside Diameter 18.00 MM
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Stud Type Threaded
Length Stud Center to End 10.236 IN
Length Stud Center to End 260.00 MM
Dust Boot Material Rubber
Tie Rod Material Steel
End 2 Threads Per Inch 18
End 1 Thread Diameter 0.551 IN
End 1 Thread Diameter 14.00 MM
Shank Length 18.00 MM
Stud Length 18.00 MM
Boot Color Black
Grade Premium
Shank Length 0.709 IN
Stud Length 0.709 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708998175
Harmonized Tariff Code (HTS) 8708998180
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) TR
UPC 00689604286951
VMRS Code 015004045
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Dodge Ram 3500 (1994-1997)
  • Dodge Ram 2500 (1994-1997)
  • Dodge Ram 1500 (1994-1997)
