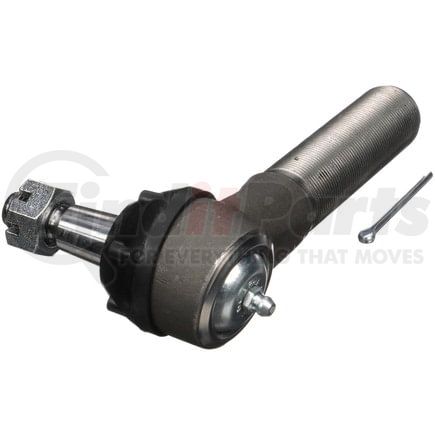

Name: Delphi TA5200 Tie Rod End
SKU: ta5200
Price: 25.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Length	157.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	45 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	1.000 IN
End 2 Thread Diameter	25.40 MM
Height	97.00 MM
Grade Type	Standard
Housing Material	Steel
36	1.000 IN
Tube Diameter	25.40 MM
Adjustable	No
Greasable	Yes
Weight	1.71 lb
Cone Outside Diameter	18.30 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	5.276 IN
Length Stud Center to End	134.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	18.30 MM
Stud Length	18.30 MM
Grade	Premium
Shank Length	0.720 IN
Stud Length	0.720 IN
662	0.720 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604288214
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Ford E-350 Econoline Club Wagon (1979-1991)
Ford E-350 Econoline (1979-1988)
Ford E-250 Econoline Club Wagon (1978-1991)
Ford E-250 Econoline (1978-1991)
