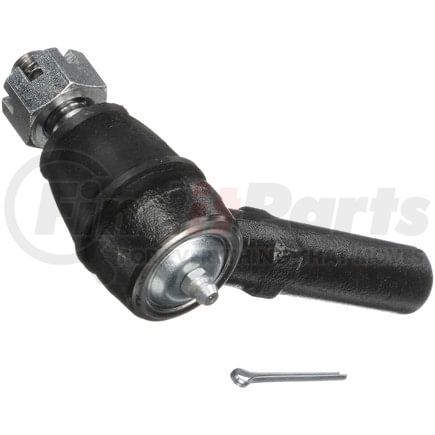

(888) 312-8812 Login SignupDELPHI TA5172 Tie Rod End
Tap to view 8 more
$3049
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 7
DELPHI TA5172 Part Description
DELPHI TA5172 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 138.00 MM |
| Color | Black |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 96.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.25 lb |
| Cone Outside Diameter | 18.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.567 IN |
| Length - Stud Center to End | 116.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.10 MM |
| Stud Length | 18.10 MM |
| Grade | Premium |
| Shank Length | 0.713 IN |
| Stud Length | 0.713 IN |
| Cone Outside Diameter | 0.713 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604287538 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5172 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES80761 |
| General Motors | 26095458 |
| TRW | JTE1286 |
| N/A | 8260954580, 101-7650, MES80761, TO90485, GES80761, TO90485XL |
DELPHI TA5172 Fits Vehicles
- Chevrolet Colorado (2004-2006)
- GMC Canyon (2004-2006)
