DELPHI part description

Product Description

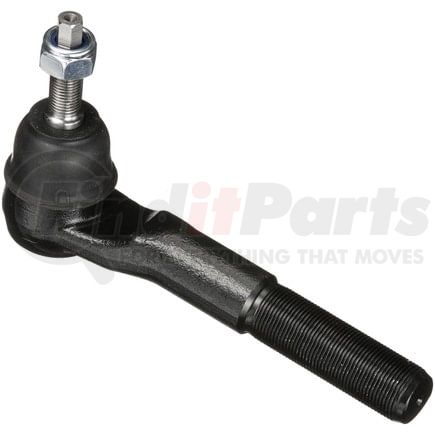

Tie Rod End

Product Attributes

Position(s) At Pitman Arm, Inner. For the position specific to your vehicle, refer to the Applications.
Item Grade Standard Replacement
Length 212.00 MM
Color Black
End 1 Gender Male
End 2 Gender Male
Pre-Greased Yes
Grease Fitting Included Yes
Dust Boot Included Yes
Width 48 MM
Type Straight
Mounting Hardware Included Yes
End 2 Thread Diameter 1.000 IN
End 2 Thread Diameter 25.40 MM
Height 123.70 MM
Grade Type Standard
Housing Material Steel
36 1.122 IN
Tube Diameter 28.50 MM
Adjustable No
Greasable Yes
Weight 2.6 lb
Cone Outside Diameter 18.60 MM
Bearing Material Steel
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Clockwise (Right)
Stud Type Threaded
Length Stud Center to End 7.244 IN
Length Stud Center to End 184.00 MM
Dust Boot Material Rubber
Tie Rod Material Steel
End 2 Threads Per Inch 16
End 1 Thread Diameter 0.551 IN
End 1 Thread Diameter 14.00 MM
Shank Length 18.60 MM
Stud Length 18.60 MM
Grade Premium
Shank Length 0.732 IN
Stud Length 0.732 IN
662 0.732 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708998175
Harmonized Tariff Code (HTS) 8708998180
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) TR
UPC 00689604287514
VMRS Code 015004070
UNSPSC 25174205

Part Interchanges

Fits Vehicles

  • Ram 2500 (2011-2012)
  • Dodge Ram 3500 (2003-2010)
  • Dodge Ram 2500 (2003-2010)
