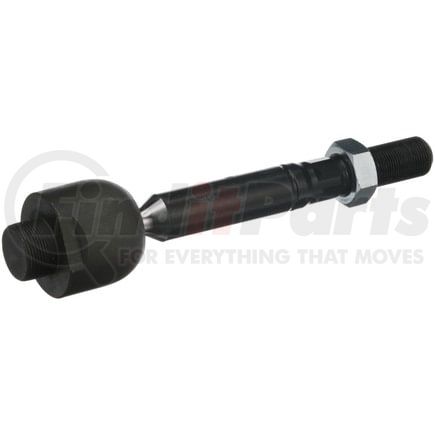

(888) 312-8812 Login SignupDELPHI TA5168 Tie Rod End
Tap to view 5 more
$3799
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
DELPHI TA5168 Part Description
DELPHI TA5168 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 249.40 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 55.1 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.181 IN |
| End 2 Thread Diameter | 30.00 MM |
| Height | 55.10 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 2.51 lb |
| Cone Outside Diameter | 0.984 IN |
| Cone Outside Diameter | 25.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 8.012 IN |
| Length - Stud Center to End | 203.50 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.866 IN |
| End 1 Thread Diameter | 22.00 MM |
| Shank Length | 25.00 MM |
| Stud Length | 25.00 MM |
| Boot Color | Black |
| Shank Length | 0.984 IN |
| Stud Length | 0.984 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604286388 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5168 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5830, 101-8138 |
| MOOG Chassis Products | EV800293 |
| Toyota | 074550309240, 45503-0C020, 45503-0C030 |
| MAS Industries | TI74280, TI74280XL |
| Dorman | 531-930 |
| TRW | JAR574 |
| N/A | MS86703, GS86703 |
DELPHI TA5168 Fits Vehicles
- Toyota Sequoia (2008-2022)
- Toyota Tundra (2007-2021)
