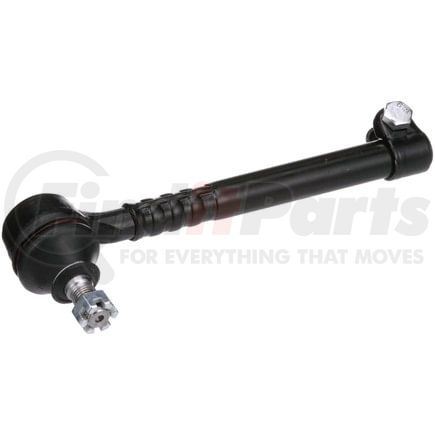

(888) 312-8812 Login SignupDELPHI TA5146 Tie Rod End
Tap to view 5 more
$2149
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
DELPHI TA5146 Part Description
DELPHI TA5146 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 217.90 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 41.9 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 71.90 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.99 lb |
| Cone Outside Diameter | 0.508 IN |
| Cone Outside Diameter | 12.90 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 2.067 IN |
| Length - Stud Center to End | 52.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 12.90 MM |
| Stud Length | 12.90 MM |
| Boot Color | Black |
| Shank Length | 0.508 IN |
| Stud Length | 0.508 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604286333 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5146 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3707 |
| MOOG Chassis Products | ES2243R |
| Toyota | 4546019125 |
| N/A | 45460-19105, 45460-19215, 4504619105, MES2243R, T2243, 534355, GES2243R, T2243PR |
DELPHI TA5146 Fits Vehicles
- Toyota Corolla (1983-1987)
