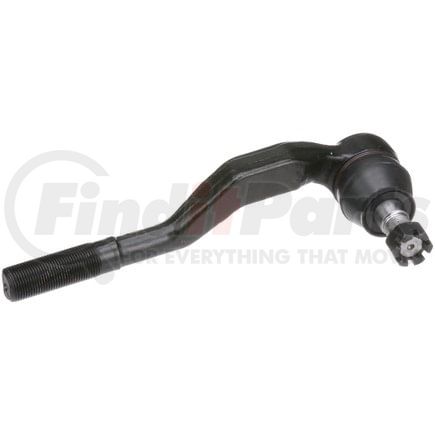

Name: Delphi TA5138 Tie Rod End
SKU: ta5138
Price: 36.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Length	249.90 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	65 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.787 IN
End 2 Thread Diameter	20.00 MM
Height	95.00 MM
Grade Type	Standard
Housing Material	Steel
Adjustable	No
Greasable	No
Weight	2.02 lb
662	0.689 IN
Cone Outside Diameter	17.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	2.717 IN
Length Stud Center to End	69.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.630 IN
End 1 Thread Diameter	16.00 MM
Shank Length	17.50 MM
Stud Length	17.50 MM
Boot Color	Black
Shank Length	0.689 IN
Stud Length	0.689 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604286302
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota Tacoma (1995-2004)
