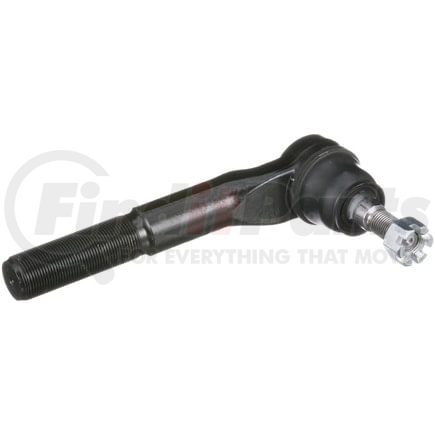

DELPHI TA5127 Part Description
DELPHI TA5127 Specifications
Product Attributes
| Position(s) | Left Outer, Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 211.60 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 54.1 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Height | 106.70 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.28 lb |
| Cone Outside Diameter | 15.90 MM |
| Cone Outside Diameter | 0.626 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.110 IN |
| Length - Stud Center to End | 79.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 15.90 MM |
| Stud Length | 15.90 MM |
| Grade Type | Standard |
| Boot Color | Black |
| Shank Length | 0.626 IN |
| Stud Length | 0.626 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604289785 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5127 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES800484 |
| Ford | AC3Z 3A131-AA, MEOE197 |
| MAS Industries | TO85201, TO85201XL |
| TRW | JTE1645 |
| N/A | 8C3Z 3A131-L, 7C3Z3A131D, MS40618 |
DELPHI TA5127 Fits Vehicles
- Ford F-350 Super Duty (2008-2016)
- Ford F-250 Super Duty (2008-2016)
