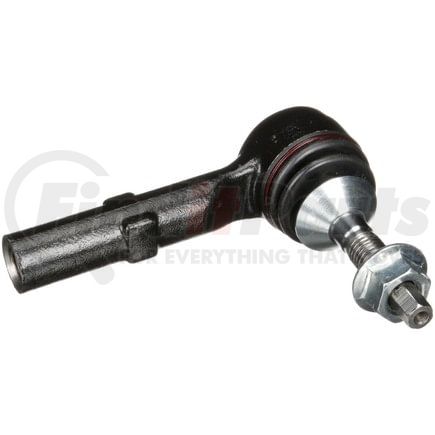

(888) 312-8812 Login SignupDELPHI TA5112 Tie Rod End
Tap to view 8 more
$3999
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TA5112 Part Description
DELPHI TA5112 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 147.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 48 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 126.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.925 IN |
| Tube Diameter | 23.50 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.78 lb |
| Cone Outside Diameter | 0.543 IN |
| Cone Outside Diameter | 13.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.843 IN |
| Length - Stud Center to End | 123.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| Shank Length | 13.80 MM |
| Stud Length | 13.80 MM |
| Grade Type | Standard |
| Boot Color | Black |
| Grade | Premium |
| Shank Length | 0.543 IN |
| Stud Length | 0.543 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604284360 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5112 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES3695 |
| Ford | 2L1Z 3A130-CA, MEOE62 |
| MAS Industries | TO85215, TO85215XL |
| TRW | JTE1300 |
| N/A | MES3695, GES3695, TO85215RD |
DELPHI TA5112 Fits Vehicles
- Lincoln Navigator (2003-2006)
- Ford Expedition (2002-2006)
