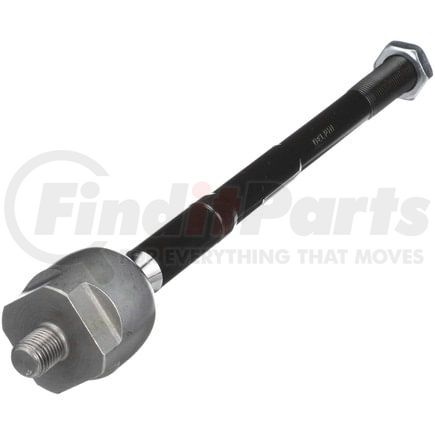

Name: Delphi TA5105 Tie Rod End
SKU: ta5105
Price: 28.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Inner
Item Grade	Standard Replacement
Length	285.00 MM
Color	Black and Gray
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Width	43 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	16.00 MM
Height	43.00 MM
Housing Material	Steel
36	0.709 IN
Tube Diameter	18.00 MM
Adjustable	Yes
Greasable	No
Weight	1.21 lb
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	9.606 IN
Length Stud Center to End	244.00 MM
Tie Rod Material	Steel
End 1 Thread Diameter	14.00 MM
Grade Type	Standard
Grade	Premium
End 2 Thread Diameter	0.630 IN
End 1 Thread Diameter	0.551 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604284346
VMRS Code	015004070
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota Tacoma (2005-2021)
