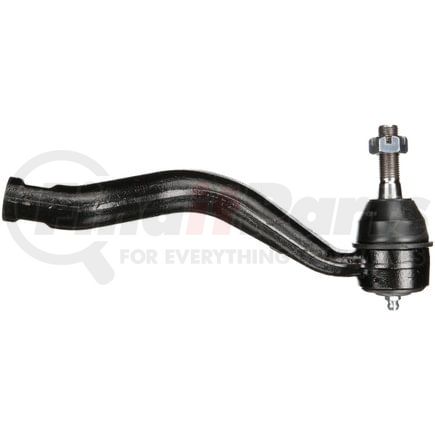

Delphi TA5101 - Tie Rod End
$1999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 240.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 64.5 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 103.60 MM |
| Housing Material | Steel |
| 36 | 1.004 IN |
| Tube Diameter | 25.50 MM |
| Adjustable | No |
| Greasable | Yes |
| Weight | 2.51 lb |
| Cone Outside Diameter | 15.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 8.543 IN |
| Length Stud Center to End | 217.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| Shank Length | 15.50 MM |
| Stud Length | 15.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.610 IN |
| Stud Length | 0.610 IN |
| 662 | 0.610 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604284322 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Lexus RC300 (2016-2022)
- Lexus IS300 (2016-2022)
- Lexus RC350 (2015-2022)
- Lexus IS350 (2011-2022)
- Lexus GS350 (2007-2011, 2013-2020)
- Lexus IS250 (2006-2015)
- Lexus GS300 (2006)
