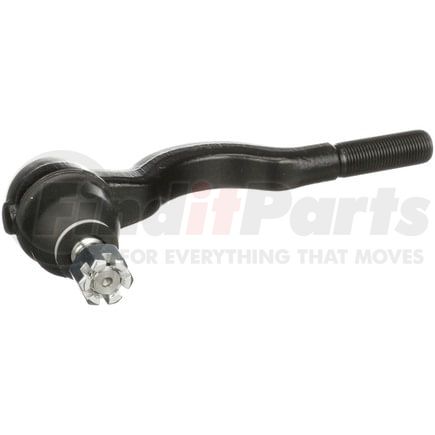

Name: Delphi TA5092 Tie Rod End
SKU: ta5092
Price: 21.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Inner
Item Grade	Standard Replacement
Length	176.30 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	46.5 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	86.10 MM
Housing Material	Steel
Adjustable	No
Weight	1.43 lb
662	0.539 IN
Cone Outside Diameter	13.70 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.25 MM
Length Stud Center to End	2.205 IN
Length Stud Center to End	56.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	13.70 MM
Stud Length	13.70 MM
Grade Type	Standard
Boot Color	Black
Shank Length	0.539 IN
Stud Length	0.539 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	CN
UPC	00689604283660
VMRS Code	015004070
UNSPSC	25174205

Fits Vehicles

Mitsubishi Montero (1983-1991)
Mitsubishi Mighty Max (1983-1994)
Dodge Ram 50 (1988-1993)
Dodge Power Ram 50 (1983-1986)
Dodge D50 (1982)
